Kazan Ansat-U Trainer Helicopter

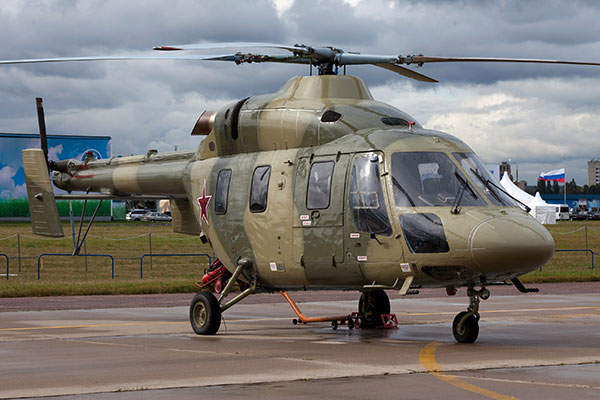

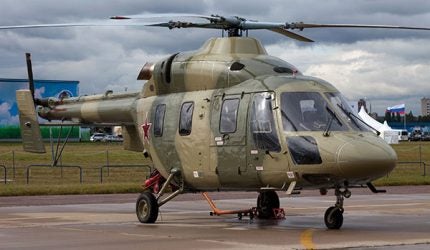

Kazan Ansat-U trainer helicopter is operated by the Russian Air Force for its cadet training missions. Image courtesy of Eugene Purel.

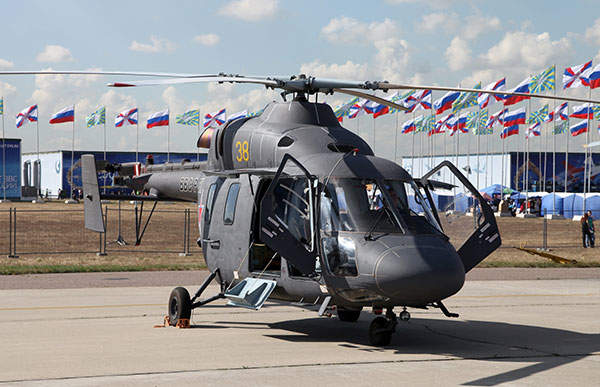

A Kazan Ansat-U trainer aircraft on display during the 100th Anniversary of the Russian Air Force. Image courtesy of Vitaly V. Kuzmin.

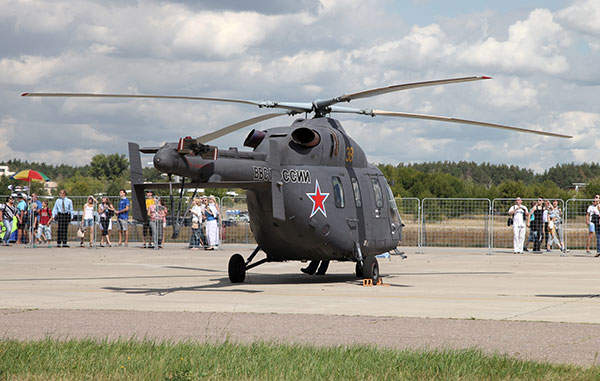

A rear view of the Russian Air Force Ansat-U trainer aircraft. Image courtesy of Vitaly V. Kuzmin.

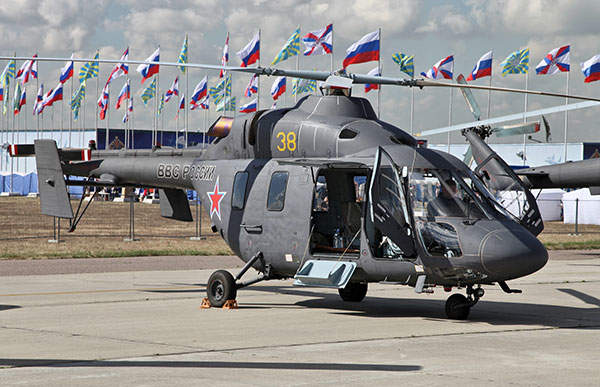

The Ansat-U trainer aircraft is equipped with two PW207K turboshaft engines and a wheeled landing gear. Image courtesy of Vitaly V. Kuzmin.

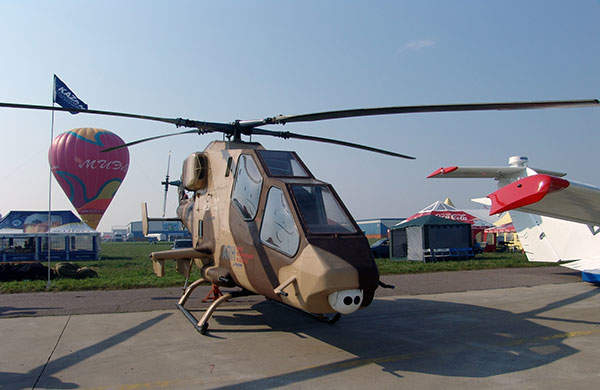

The Kazan Ansat-2RC, an attack helicopter variant, on display at MAKS 2007 airshow. Image courtesy of Vitaly V. Kuzmin.

Ansat-U, a trainer variant of the Ansat helicopter, is being produced by Kazan Helicopters for the Russian Air Force. The helicopter can be used for the training of cadets from military/civil aviation schools and for the retraining of pilots.

Kazan was selected to supply Ansat-U training helicopters to the Russian armed forces in September 2001. The assembly of the first Ansat-U prototype was completed in April 2004. Following the completion of tests, the full scale production of Ansat-U was authorised in December 2008.

Russia ordered ten helicopters in small batches between 2008 and 2009. The helicopters were delivered to the Combat Training Centre in Torzhok and Syzran Higher Military Aviation School for Pilots in 2010. The latest batch was delivered to the Air Force Training Centre in Syzran in 2011.

The Russian Air Force plans to induct a fleet of 30 Ansat-U trainer helicopters by 2020. The Mozambique Government has also expressed interest in acquiring Ansat-U trainer helicopters.

Ansat-U design and features

The Ansat-U helicopter is a trainer modification of the Ansat helicopter. It incorporates redundant flight control systems and twin gas-turbine engines to deliver the high degree of safety required for training missions. The aircraft is equipped with a dual-control system and seating arrangement for six students.

The helicopter has an overall length of 13.5m, a cabin width of 1.68m and a height of 3.56m. The fuselage length without tail boom is 6.9m.

Ansat helicopter variants

The transport variant of Ansat can carry up to ten passengers and 1,000kg of internal payload as well as 1,200kg of external cargo under-slung. It possesses the most spacious cabin (6.7m³) in its category.

The Ansat SAR version is intended for search and rescue, the evacuation of casualties, and the transportation of special service personnel and their equipment. The variant features two stretchers for casualties, two seats for medical personnel, and a hatch for the loading of stretchers.

The Ansat Ambulance variant is equipped with medical equipment, two stretchers, one seat for casualties and two seats for medical personnel. The VIP variant features sophisticated seating and other amenities for two VIPs and two attending personnel.

Kazan Ansat-2RC is an attack helicopter variant armed with a 12.7mm machine gun and four hardpoints on two stub wings. The hardpoints can hold rocket launchers, bombs and anti-aircraft missiles.

Cockpit and avionics

The Ansat-U is crewed by one pilot. The cockpit is equipped with KSU-A digital fly-by-wire control system. The four-channel digital integrated system is capable of controlling the helicopter in all flight stages. The system allows the pilot to simulate engine shut off-mode without halting the engines.

The helicopter can also be configured to provide various levels of control difficulty for pilot training.

Engines and landing gear

The Ansat-U helicopter is powered by two PW207K turboshaft engines driving a four-blade main rotor and two-blade tail rotor. Each engine produces a continuous power of 561shp and maximum power of 630shp. The helicopter is equipped with an electronic engine management system. It ensures the pilots to practice various scenarios of engine failures.

Ansat-U has a wheeled landing gear in place of the ski landing gear found in the base model. The landing gear consists of a steerable nose unit and two main landing gear sections.

Ansat-U performance

The Ansat-U can fly at a maximum altitude of 5,700m. The maximum hover ceiling (out of ground effect) is 3,300m. The maximum rate of climb of the helicopter is 21.5m/sec. The maximum payload carrying capacity is 1,300kg.

The helicopter has a cruise speed of 250km/h and maximum range of 635km. The Velocity Never Exceed (VNE) speed is 285km/h.
